Axopar 28 Cabin

Specifications

  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin
  • Axopar 28 Cabin

Technical Specifications

  • Overall length: incl. bathing platforms: 8,99 m (29ft 6in)
  • Beam: 2,85 m (9ft 4in)
  • Dry weight: (excl. engine): 1790 kg (3945lbs)
  • Batteries:
  • Fuel capacity: 260 l (68,70 gal)
  • Water capacity:

Engine Options

  • Mercury 200 XL Verado 1,1 l/nm @ 23 kts, max speed 39 kts
  • Mercury 300 XL Verado 1,45 l/nm @ 28,5 kts, max speed 46 kts
Axopar Boats, Axopar 28 Cabin

Standard Equipment

Make Enquiry
HULL AND DECK Hull in Vinylester resin for the first coats and deck in GRP material, Stainless steel cleats aft, central and forward, Large anchor box with drainage in bow, Large stowage lockers on foredeck, Large bumper list in grey, Light green tinted toughened glass windscreen and windows, Self-draining deck, Pulpit and cockpit handles in hand polished stainless steel, Deck and hatches with anti-skid finishing, Fender storage on aft deck, Twin bathing platforms in Esthec with telescopic bathing ladder, Integrated bracket for outboard engines. HELM CONSOLE Integrated iPad console, Nextel painted dashboard panels, Illuminated pushbuttons, Hydraulic steering with tilt function, Leather steering wheel with Axopar logo, 2 x Cup holders, 12 V Power outlet, Compass.

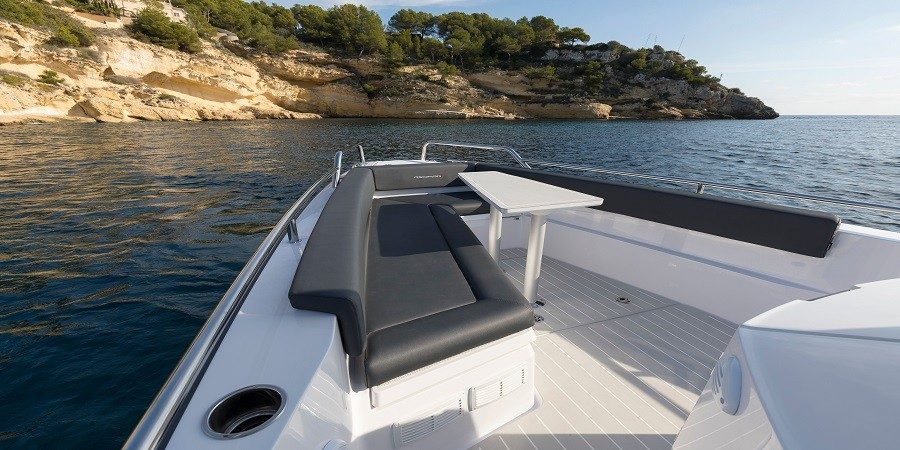

DECK LAY-OUT AND SEATING
Twin large sliding doors, Large sliding canvas roof, Aft sofa convertible to bed for two persons, Walk-around deck, Sociable sofa on foredeck with optional table, convertible into a sun bed, Separate driver and co-pilot seats with flip-up front and outer armrest, storage under co-pilot seat, lowered
floor level for driving while standing, Wide aft sofa with armrests, Passenger footrest, Storage under aft sofa, Floor carpets, Large aft deck area with twin storage hatches, Walnut wood floor on centre console, ”Dynaskin” Beige or Light Grey material on driver/co-pilot seat and aft sofa.

ELECTRICS
LED roof lights x 4, Electrical control panel with battery switch and direct supply, Fuse control panel with automatic fuses, Navigation lights, Light mast with anchor light white painted, Windscreen wipers, Electric bilge pump, Signal horn, Power outlet 12v on console.

FRONT DECK STOWAGE AREA / TOILET
Large stowage area / optional toilet accessed from foredeck.

OTHER
2 x Removable stainless steel transom bars, Aluminium fuel tank 260l, Bow thruster preparation in hull, Harbour cover, 2 kg Fire extinguisher, Manual bilge pump, Fresh air vents in roof panel.

Extra Equipment

▲ Top

PREMIUM PACKAGE

  • Table on foredeck
  • Foredeck seat cushions and back rest
  • Sun deck
  • Flagpole In stainless steel
  • Mooring package: incl. 4 x fenders, 4 x fender covers with axopar logo, 4 x fender ropes, 4 x mooring ropes 14mm/10m
  • 7,5kg SS anchor + 30m Anchor rope

TOILET PACKAGE

  • Jabsco Twist & Lock manual toilet
  • 45L Septic tank with level indicator and deck outlet
  • Esthec floor in toilet compartment
  • Mirror
  • Manual pump

ESTHEC PACKAGE

  • Composite Esthec exterior flooring and foredeck seating hatches in Smoke or Honey colour with black caulking

FLEXITEEK 2G PACKAGE

  • Flexiteek 2:nd generation exterior flooring and foredeck seating hatches in Scrubbed colour with black caulking

VERSION R

  • Special edition with hull and deck in Cool grey
  • Details and rails painted black
  • Seats and aft sofa in exclusive Niroxx fabric

OPTIONS

  • Antifouling, Grey or White
  • Bow thruster Side-Power SE40 2.2kw
  • Double battery preparation
  • Electric windlass, Engbo Midi 201
  • Fresh water system + 45l water tank
  • Gas hob with sink (only with fresh water option)
  • LED deck lights x 9 + LED cabin downlights
  • Pulpit rails, high
  • Refrigerator, Dometic CoolMachine 40l, 12V
  • Roof rails
  • Shower on aft deck (only with fresh water)
  • Shore power 230V with 12Ah charger
  • Table on foredeck in Esthec, with handrail
  • Teak table in cabin
  • 2 x Folding seats, for aft deck
  • Harbour cover for foredeck cushions
  • Trim tabs with joystick steering
  • Wood floor in cabin, walnut
  • Search light
  • Foredeck cushions, incl backrest
  • Hull colours: Cool grey or Navy blue
  • Mercury EFI pre-rigging
  • Mercury Verado pre-rigging, incl. power steering and Vessel View 4″

ELECTRONICS

  • Chart plotter Garmin 1020XS
  • Chart plotter Garmin GPSMAT 8012, flush mount
  • Bluetooth stereo system Garmin Meteor 300
  • Meteor 300 Remote Control, for use without chartplotter
  • 2 x Extra speakers, foredeck
  • Radar Garmin GMR18 HD
  • Depth Sounder to Garmin 1020XS, transom mount
  • Sonar module GCV10 with Downvü/Sidevü to 8012, transom mount
  • Webasto AirTop3900 heater

Disclaimer: The specifications are approximations and subject to variance. We reserve the right to make changes without future notice. Some equipment options may not be available.
